The fully automatic industrial washer extractor is engineered for high-volume laundry operations with a 130 kg capacity per cycle. This microprocessor-controlled system features programmable logic for automated washing, rinsing, and extraction processes. Constructed with corrosion-resistant stainless steel components, the machine incorporates a balanced suspension system and variable frequency drive for stable operation during high-G-force extraction. The unit supports integration with building management systems and can be configured for steam or electric heating applications. This equipment is suitable for commercial laundry facilities requiring reliable processing of large textile volumes with minimal operator intervention.
Technical Parameters
| Technical Parameter |
Unit |
SXT-1300FS |
SXT-1500FS |
| Rated Capacity |
kg |
130 |
130 |
| Front Tilt Angle |
° (Degree) |
25° |
21° |
| Rear Tilt Angle |
° (Degree) |
25° |
26° |
| Cylinder Diameter |
mm |
1300 |
1470 |
| Cylinder Depth |
mm |
980 |
880 |
| Washing Speed |
rpm |
35 (Variable) |
32 (Variable) |
| High-Speed Extraction Speed |
rpm |
650 (Variable) |
610 (Variable) |
| Power Supply |
V/Ph/Hz |
380/3/50 |
380/3/50 |
| Main Motor Power |
kW |
11 |
15 |
| Heating Method |
|
Steam |
Steam |
| Steam Pipe Diameter |
inch |
G1″ |
G1.5″ |
| Steam Pressure |
MPa |
0.4-0.6 |
0.4-0.6 |
| Cold/Hot Water Pipe Diameter |
inch |
G2″ |
G2″ |
| Cold/Hot Water Pressure |
MPa |
0.3-0.5 |
0.3-0.5 |
| Drain Outlet Diameter |
mm |
Φ127*2 |
Φ140*2 |
| Compressed Air Pressure |
MPa |
0.6-0.8 |
0.6-0.8 |
| Noise Level |
dB(A) |
≤75 |
≤75 |
| Net Weight |
kg |
4500 |
6800 |
| Overall Dimensions (W*D*H) |
mm |
2070*2400*2085 |
2520*2380*2612 |
Application Scenarios:
- Large Hotel & Resort Laundry Facilities
- Hospital & Healthcare Central Laundry
- Uniform & Linen Rental Companies
- Correctional Facility Laundry Operations
- Sports Arena & Stadium Laundry Services
- Cruise Ship & Airline Linen Processing
- Industrial Workwear Cleaning Plants
- University & Boarding School Laundries
- Food Processing Industry Workwear Cleaning
- Military Base Laundry Operations
- Large-Scale Spa & Wellness Centers
Frequently Asked Questions
Q: What capacity ranges are typically available for large capacity industrial washer extractors?
A: Industrial washer extractors are available in various capacities to meet different operational needs. Standard models range from 20 lb (9 kg) to over 275 lb (120 kg) per cycle, with common options including 65 lb (30 kg), 130 lb (60 kg), and 200 lb (90 kg) configurations.
Q: What are the key features of the control systems in these machines?
A: These systems typically feature advanced microprocessor controls with touchscreen interfaces and programmable logic. Operators can create and store numerous custom wash programs, with many systems supporting multiple languages and offering connectivity options for remote monitoring and data management.
Q: What are the installation requirements for a large capacity industrial washer extractor?
A: Installation requirements vary by model. While some soft-mounted units can operate without floor anchorage, larger hardmounted models typically require proper machine anchorage and a solid foundation. Specific requirements should be verified with the manufacturer's installation guidelines.
Q: How does the G-force extraction impact laundry operations?
A: High G-force extraction removes significant moisture from linens during the spin cycle, substantially reducing drying time and energy consumption in subsequent drying processes. This improves overall laundry throughput and lowers operational costs.
Q: What construction materials are used to ensure durability?
A: These machines are constructed with corrosion-resistant stainless steel for critical components including drums, vats, and structural panels. They feature robust frames and heavy-duty drive systems designed for continuous commercial operation.
Q: What water and energy-efficient technologies are incorporated?
A: Modern systems incorporate various efficiency technologies including optimized load guidance systems, eco-washing programs that reduce water and electricity consumption, and advanced rinse technologies that minimize water usage. Some models also offer water recovery options.
Q: What warranty and service support is typically offered?
A: Reputable manufacturers typically provide comprehensive warranty coverage, often including five-year protection for major components such as frames, cylinders, drive systems, and seals. This is supported by technical assistance, spare parts availability, and global service networks.

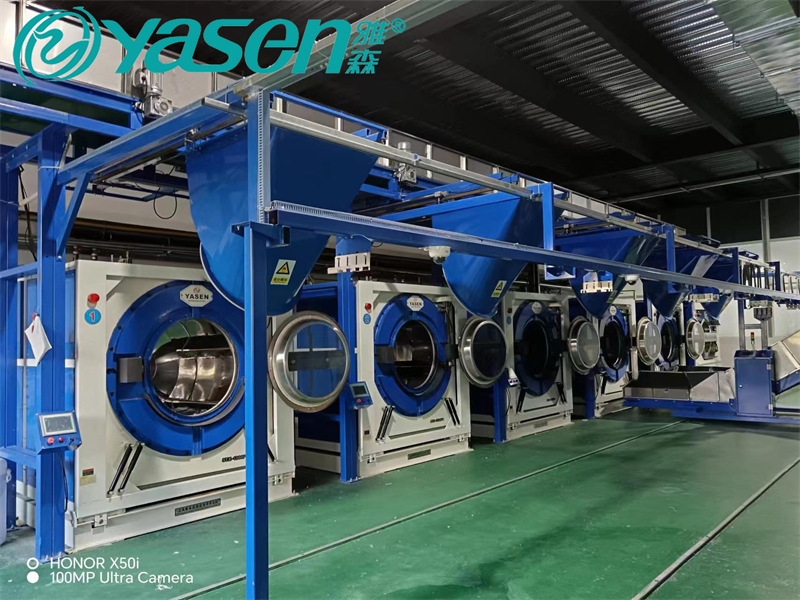

Yasen IWS Washing System
Yasen IWS Washing System is an integrated washing system based on automated single machines. It offers high extent of customization washing solution for the clients, which brings a comprehensive input-sorting-washing-drying-output solution.
Compared with tunnel washing equipment, Yasen IWS system is more flexible to configure, clients are allowed to select the particular quantity of washing or drying machines according to their actual washing needs. Clients are also allowed to upgrade the system with more machines in the future, in order to meet the increasing quantity of washing orders.
The structure is strengthened for the constant washing tasks, the airbag is optimized for 350G extracting power. The system also may connected with other processing equipment such as folders, ironers to save the time and the cost, then lower the energy consumption.
Yasen IWS system have strong mechanical maintenance convenience, which will keeps high running efficiency when one or more washer/dryer need maintenance.
When a certain machine need maintenance, users just need to push the machine out of the system and carry out maintenance independently while the whole system running is almost not effected when compared with tunnel washing equipment.
