The 130kg industrial washer extractor is designed for high-volume laundry operations requiring heavy-duty processing capabilities. This microprocessor-controlled unit features programmable cycles for various textile types and soil levels. Constructed with corrosion-resistant stainless steel, the machine incorporates a balanced suspension system and high-G-force extraction to reduce moisture retention. Its heavy-duty motor and drive system are engineered for continuous operation in commercial environments. The unit supports integration with building management systems for automated chemical dosing and utility monitoring. This equipment is suitable for institutional laundry facilities, textile rental services, and other operations requiring large-capacity processing.
Technical Parameters
| Technical Parameter | Unit | SXT-1300FS | SXT-1500FS |
|---|
| Rated Capacity | kg | 130 | 130 |
| Front Tilt Angle | ° (Degree) | 25° | 21° |
| Rear Tilt Angle | ° (Degree) | 25° | 26° |
| Cylinder Diameter | mm | 1300 | 1470 |
| Cylinder Depth | mm | 980 | 880 |
| Washing Speed | rpm | 35 (Variable) | 32 (Variable) |
| High-Speed Extraction Speed | rpm | 650 (Variable) | 610 (Variable) |
| Power Supply | V/Ph/Hz | 380/3/50 | 380/3/50 |
| Main Motor Power | kW | 11 | 15 |
| Heating Method | | Steam | Steam |
| Steam Pipe Diameter | inch | G1″ | G1.5″ |
| Steam Pressure | MPa | 0.4-0.6 | 0.4-0.6 |
| Cold/Hot Water Pipe Diameter | inch | G2″ | G2″ |
| Cold/Hot Water Pressure | MPa | 0.3-0.5 | 0.3-0.5 |
| Drain Outlet Diameter | mm | Φ127*2 | Φ140*2 |
| Compressed Air Pressure | MPa | 0.6-0.8 | 0.6-0.8 |
| Noise Level | dB(A) | ≤75 | ≤75 |
| Net Weight | kg | 4500 | 6800 |
| Overall Dimensions (W*D*H) | mm | 2070*2400*2085 | 2520*2380*2612 |
Application Scenarios
- Large Hotel Chain Laundry Facilities
- Hospital and Healthcare Linen Services
- Prison and Correctional Facility Laundry Operations
- Uniform and Textile Rental Companies
- Industrial Workwear Cleaning Plants
- Sports Arena and Stadium Laundry Services
- Cruise Ship and Airline Linen Processing
Frequently Asked Questions
Q: What are the primary applications for a 130kg industrial washer extractor?
A: This equipment is designed for large-scale laundry operations, typically serving commercial laundries, hotel chains, healthcare facilities, and correctional institutions that process substantial volumes of linens and workwear.
Q: What type of control system does a modern 130kg industrial washer extractor utilize?
A: Modern units feature advanced microprocessor control systems, such as the UniLinc™ controller, which enables customizable programming, remote monitoring, and centralized management of multiple machines.
Q: What structural features ensure the durability of a 130kg washer extractor?
A: Key durability elements include a reinforced steel frame engineered to withstand vibration and load imbalances, upgraded drive components for extended service life, and cylinders with perforated lifting ribs for optimal washing action.
Q: How does a 130kg industrial washer extractor contribute to operational cost reduction?
A: These machines incorporate efficiency technologies including advanced rinse systems that minimize water consumption and high G-force extraction that reduces moisture retention, thereby decreasing drying time and energy usage.
Q: What are the typical power requirements for a 130kg industrial washer extractor?
A: These machines typically require a three-phase power supply and can be configured for various heating methods including electric, steam, or gas, with specific requirements for water connections and drainage systems.
Q: What safety and maintenance features are typically incorporated?
A: Standard features include comprehensive diagnostic systems for troubleshooting, programmed maintenance alerts, and robust safety interlocks, all designed to ensure compliance with relevant industrial standards.

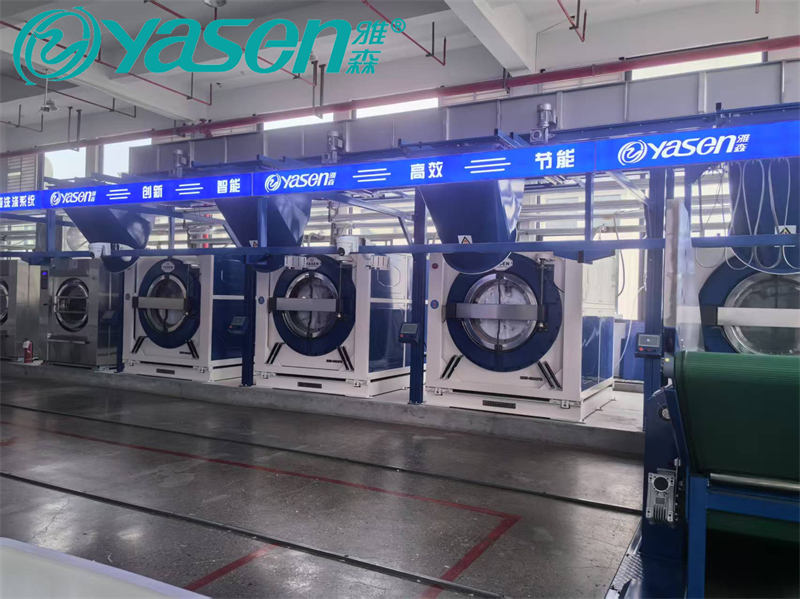

Yasen IWS Washing System
Yasen IWS Washing System is an integrated washing system based on automated single machines. It offers high extent of customization washing solution for the clients, which brings a comprehensive input-sorting-washing-drying-output solution.
Compared with tunnel washing equipment, Yasen IWS system is more flexible to configure, clients are allowed to select the particular quantity of washing or drying machines according to their actual washing needs. Clients are also allowed to upgrade the system with more machines in the future, in order to meet the increasing quantity of washing orders.
The structure is strengthened for the constant washing tasks, the airbag is optimized for 350G extracting power. The system also may connected with other processing equipment such as folders, ironers to save the time and the cost, then lower the energy consumption.
Yasen IWS system have strong mechanical maintenance convenience, which will keeps high running efficiency when one or more washer/dryer need maintenance.
When a certain machine need maintenance, users just need to push the machine out of the system and carry out maintenance independently while the whole system running is almost not effected when compared with tunnel washing equipment.
