Место происхождения:
Шанхай, Китай
Фирменное наименование:
YASEN
Сертификация:
CE,ISO9001:2008
Номер модели:
IWS

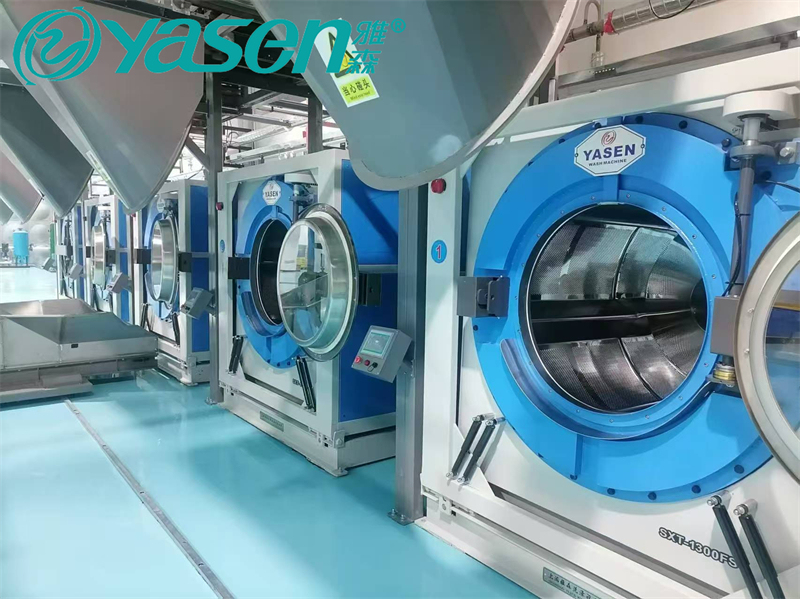

This series of commercial laundry equipment comprises large-capacity washer-extractors and dryers engineered for high-volume operations in institutional and hospitality settings. The systems feature programmable cycles suitable for various textile types, from hospital linens requiring hygienic processing to restaurant kitchen textiles with high oil-based soil loads. Constructed with corrosion-resistant stainless steel components, the equipment is designed for continuous operation with minimal maintenance. Units can be configured for steam or gas heating systems and include moisture sensing and automated cooling cycles for operational efficiency. These machines meet the specific requirements of healthcare, hospitality, and food service establishments where consistent results, durability, and compliance with industry standards are essential.
Technical Parameter | Unit | SXT-1300FS | SXT-1500FS |
---|---|---|---|
Rated Capacity | kg | 130 | 130 |
Front Tilt Angle | ° (Degree) | 25° | 21° |
Rear Tilt Angle | ° (Degree) | 25° | 26° |
Cylinder Diameter | mm | 1300 | 1470 |
Cylinder Depth | mm | 980 | 880 |
Washing Speed | rpm | 35 (Variable) | 32 (Variable) |
High-Speed Extraction Speed | rpm | 650 (Variable) | 610 (Variable) |
Power Supply | V/Ph/Hz | 380/3/50 | 380/3/50 |
Main Motor Power | kW | 11 | 15 |
Heating Method | Steam | Steam | |
Steam Pipe Diameter | inch | G1″ | G1.5″ |
Steam Pressure | MPa | 0.4-0.6 | 0.4-0.6 |
Cold/Hot Water Pipe Diameter | inch | G2″ | G2″ |
Cold/Hot Water Pressure | MPa | 0.3-0.5 | 0.3-0.5 |
Drain Outlet Diameter | mm | Φ127*2 | Φ140*2 |
Compressed Air Pressure | MPa | 0.6-0.8 | 0.6-0.8 |
Noise Level | dB(A) | ≤75 | ≤75 |
Net Weight | kg | 4500 | 6800 |
Overall Dimensions (W*D*H) | mm | 2070*2400*2085 | 2520*2380*2612 |
A: This equipment is designed for high-volume laundry operations in hospitality and healthcare sectors, including hotels processing bed linens and towels, hospitals handling patient linens and staff uniforms, and restaurants cleaning kitchen textiles.
A: Commercial machines are available in various capacities, typically ranging from 15 kg to over 200 kg per cycle. Common configurations include 50kg, 100kg, and 130kg models to accommodate different operational requirements.
A: Key efficiency features include programmable cycles for different textile types and soil levels, high-G-force extraction to reduce moisture content and drying time, and advanced drying systems with moisture sensing technology to prevent over-drying.
A: These systems typically utilize microprocessor-based programmable logic controllers that allow operators to set and store multiple wash cycles, though some models may feature simpler mechanical control interfaces.
A: Installation typically requires a 380V power supply, proper utility connections for water, drainage and heating systems, and a level, reinforced foundation to support the equipment's substantial weight and operational vibrations.
A: These machines are constructed with corrosion-resistant stainless steel for critical components like drums and outer casings, ensuring long-term durability in demanding commercial environments.
Yasen IWS Washing System is an integrated washing system based on automated single machines. It offers high extent of customization washing solution for the clients, which brings a comprehensive input-sorting-washing-drying-output solution.
Compared with tunnel washing equipment, Yasen IWS system is more flexible to configure, clients are allowed to select the particular quantity of washing or drying machines according to their actual washing needs. Clients are also allowed to upgrade the system with more machines in the future, in order to meet the increasing quantity of washing orders.
The structure is strengthened for the constant washing tasks, the airbag is optimized for 350G extracting power. The system also may connected with other processing equipment such as folders, ironers to save the time and the cost, then lower the energy consumption.
Yasen IWS system have strong mechanical maintenance convenience, which will keeps high running efficiency when one or more washer/dryer need maintenance.
When a certain machine need maintenance, users just need to push the machine out of the system and carry out maintenance independently while the whole system running is almost not effected when compared with tunnel washing equipment.
